Blurring the line between living spaces to make for the perfect view

SCHÜCO ASE 60/80 sliding system

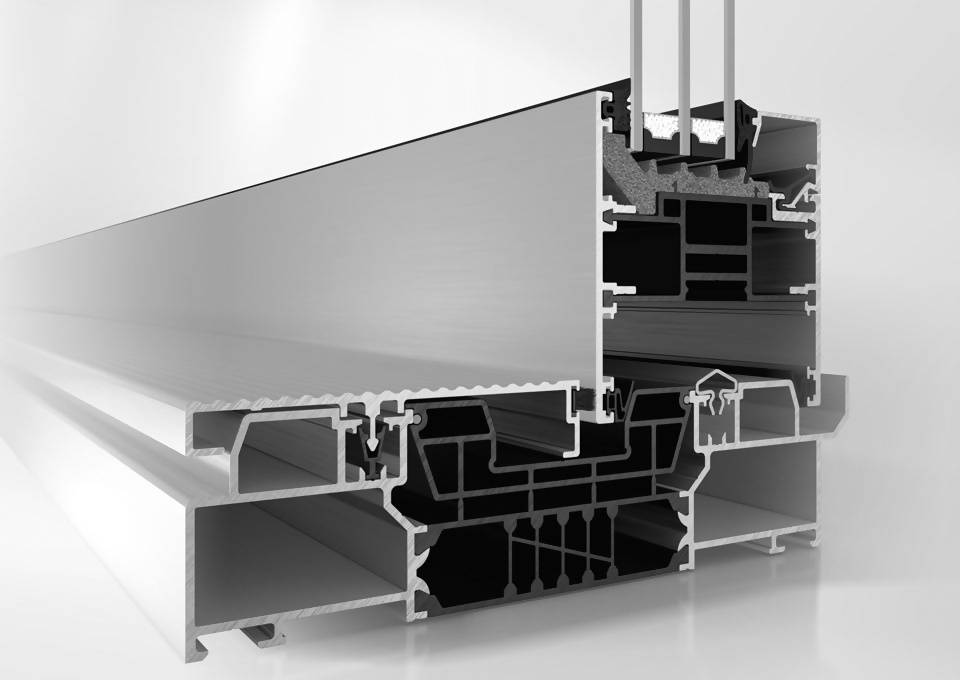

Always one step ahead with the latest technologies. Schüco ASE 60/80 (Aluminium Sliding Element) sets new standards for design and comfort.   The slimline profile with its optimised insulation zones offers significantly improved thermal insulation properties in all basic depths, even up to passive house level.  The system supports both sliding and lift-and-slide fittings, and offers highly versatile single, double and triple track versions.

Enquire about Schüco ASE 60/80

Premium Aluminium Sliding System

Large-scale units up to 3500mm x 3200mm or 3200mm x 3500mm create a pleasant atmosphere with living spaces that are flooded with light.

x
x
x
x
x

Key Features

Secure pad lock PAS 24

High level of security

State-of-the-art fittings solutions with security components that are not visible from the outside ensure the highest level of security without compromising on aesthetic design.

Ratio Icon

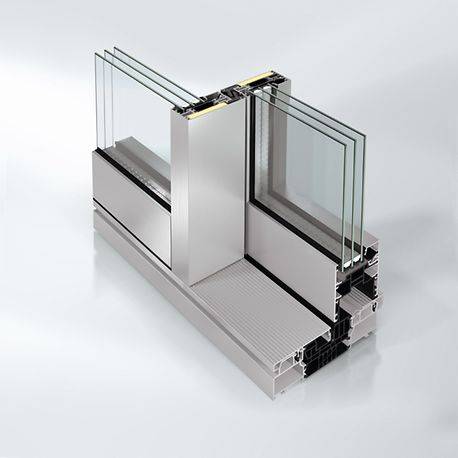

Ultra slimline interlock section as low as 40mm

Large-scale units up to 3500 mm x
3200 mm or 3200 mm x 3500 mm create a pleasant atmosphere with living spaces that are flooded with light.

Thermal Icon

U-values as low as 0.99

A full thermally efficient solution that makes for a low-energy household.

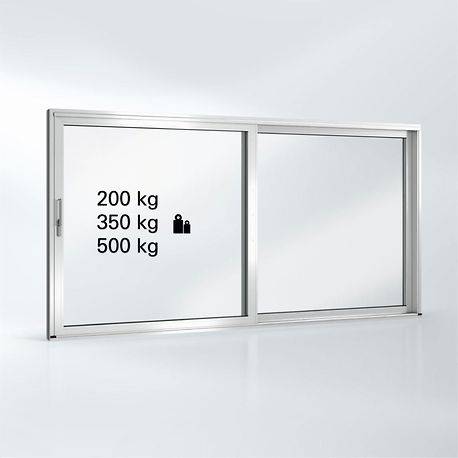

Maximum transparency

Large-scale units up to 3500 mm x
3200 mm or 3200 mm x 3500 mm create a pleasant atmosphere with living spaces that are flooded with light.

More opening types

The extended range of opening types opens up more freedom for individual design.

Clever design

Solutions integrated in the profile ensure an extremely secure system without detracting from the building architecture.

Performance & technical

PropertyASE 60ASE 80
Max moving panel weight500kg500kg
Wind load resistanceC5/B5C5/B5
Weathertightness (Class)E900E900
Air TightnessClass 4 (600 Pa)Class 4 (600 Pa)
Operating forcesClass 1Class 1
Burglar resistanceClass 2Class 2
Thermal insulationfrom 1.1 W/m2Kfrom 0.99 W/m2K
Corrosion protectionClass 4Class 4
Enquire about Schüco ASE 60/80

Frequently asked questions

What is the maximum height that the doors can reach?

3500mm x 3200mm or 3200mm x 3500mm is the max height and width for panel vents, giving installers a wide array of options when operating slimline aluminium sliding doors on site. With such a generous span, you’ll be able to stretch the boundaries with what’s typically possible with rear entrance door sizes. Simply let the viiu team know your specific project dimensions and we can get to work engineering the system to any height and width up to this maximum.

Do you offer on-site installation support and advice?

We have a nationwide network of registered ultra-slim sliding door installers who have been through our extensive in-house training programme to ensure the highest standards and level of care.

How quick can viiu doors be supplied?

Depending on the slimline sliding door configuration and colour required, we aim to fabricate and supply viiu sliding door panels in as little as 8 weeks. If necessary, we can deliver frames to directly to project site or your company HQ. Our reach is nationwide, meaning that there’s no limit to where we can transport the system – location isn’t a factor.
